Spark 개발환경 구축 및 spark-submit

Posted Aug 14, 2020 2020-08-14T19:28:00+09:00 by Kang HyunGu

poc 서버에서 scala 프로그램을 개발하기 힘들기 때문에 로컬에서 개발한 프로그램을 jar파일로 묶어 배포하는 방식이 필요하여 IntelliJ + Maven + Scala 환경을 구축한 뒤 spark-submit 테스트를 한다.

1. Project 생성

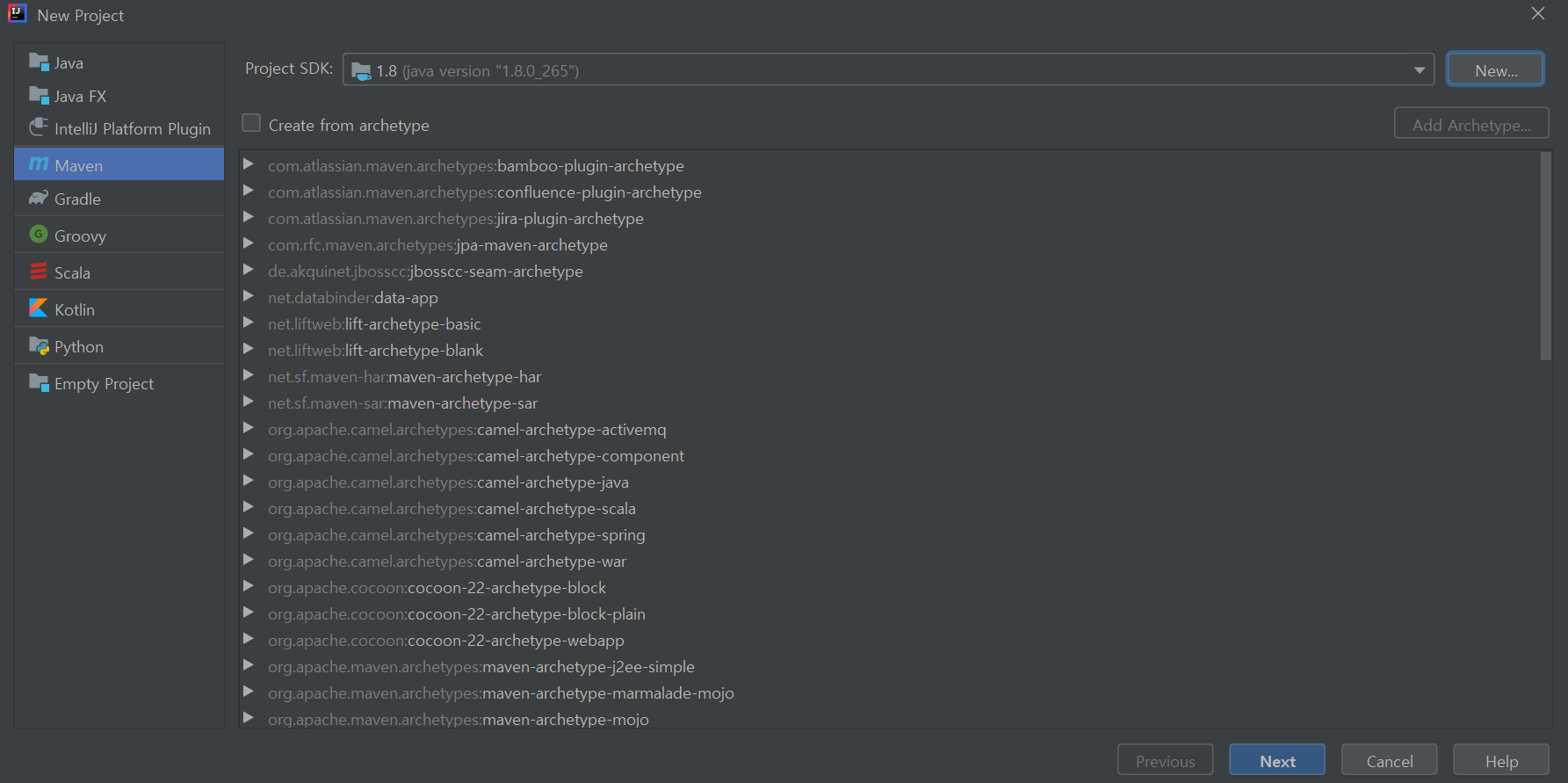

1.1 IntelliJ에서 New Project 클릭 후 Maven 프로젝트를 만들어준다.

이때 주의사항으로는 JDK 호환성 문제로 현재 사용하는 Scala 버전에서는 1.8 버전의 JDK로 프로젝트를 만들어준다.

Alt text

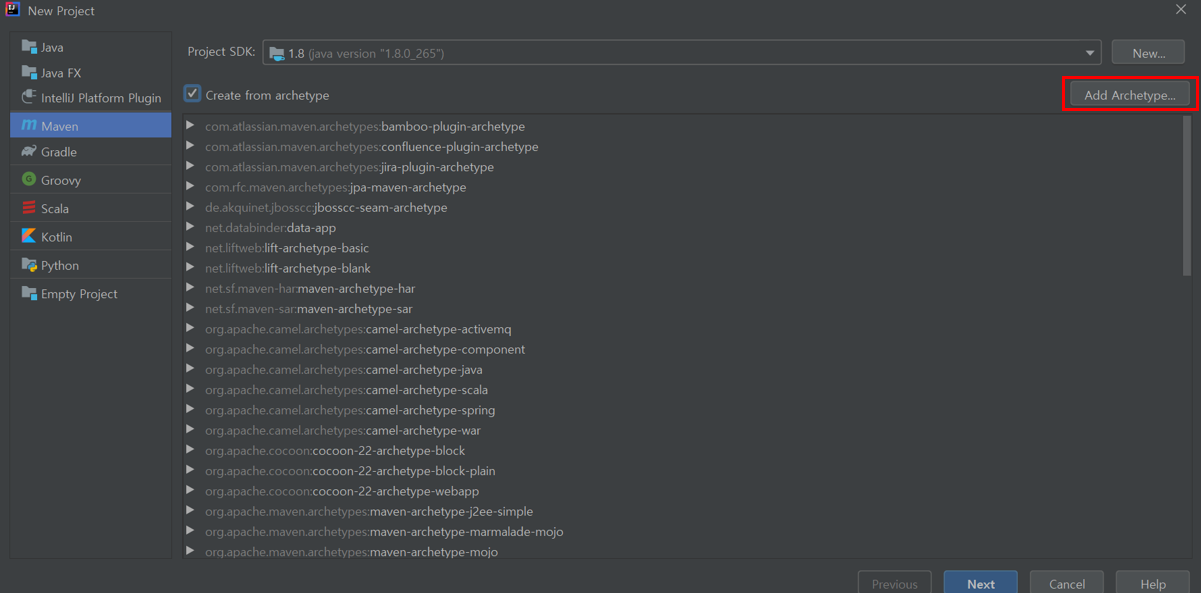

1.2 Create from archetype 체크박스 선택후 Add Archetype 버튼 클릭.

Alt text

1.2 GroupId, ArtifactId, Version 입력

1
2
3

GroupId:net.alchim31.maven
ArtifactId:scala-archetype-simple
Version:1.6

Alt text

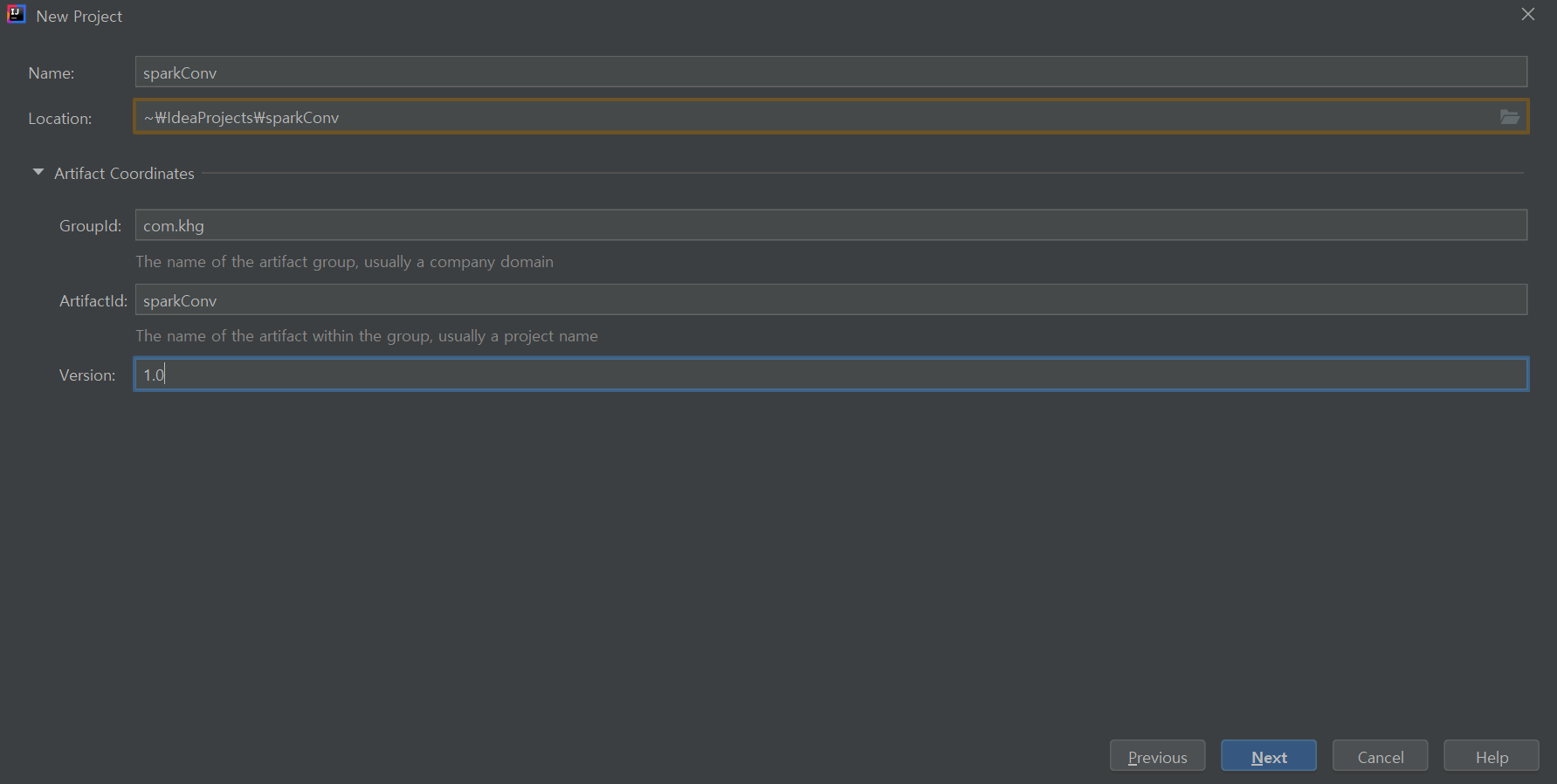

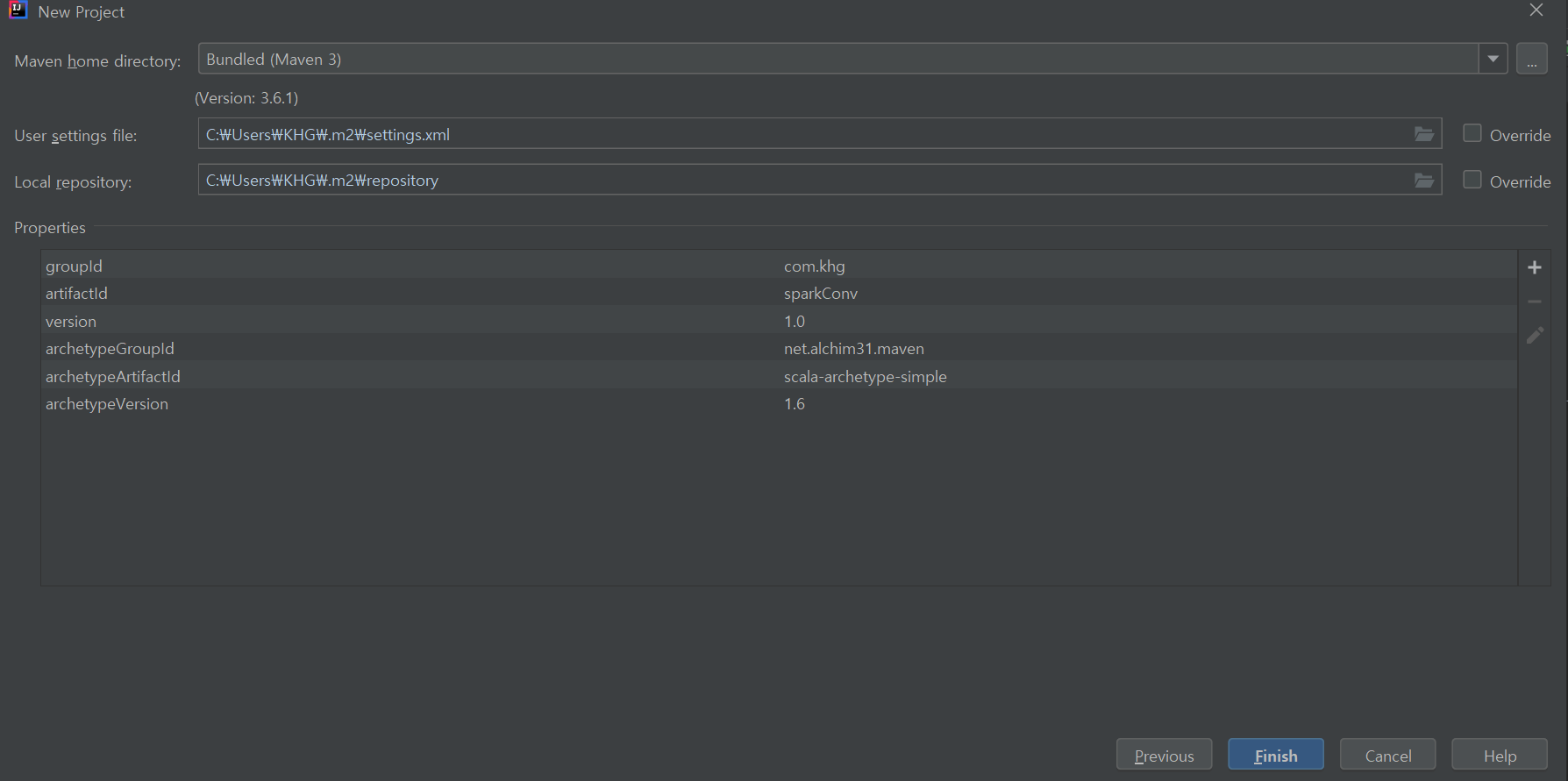

1.3 프로젝트 정보 입력후 프로젝트 생성

Alt text

Alt text

2. pom.xml 설정

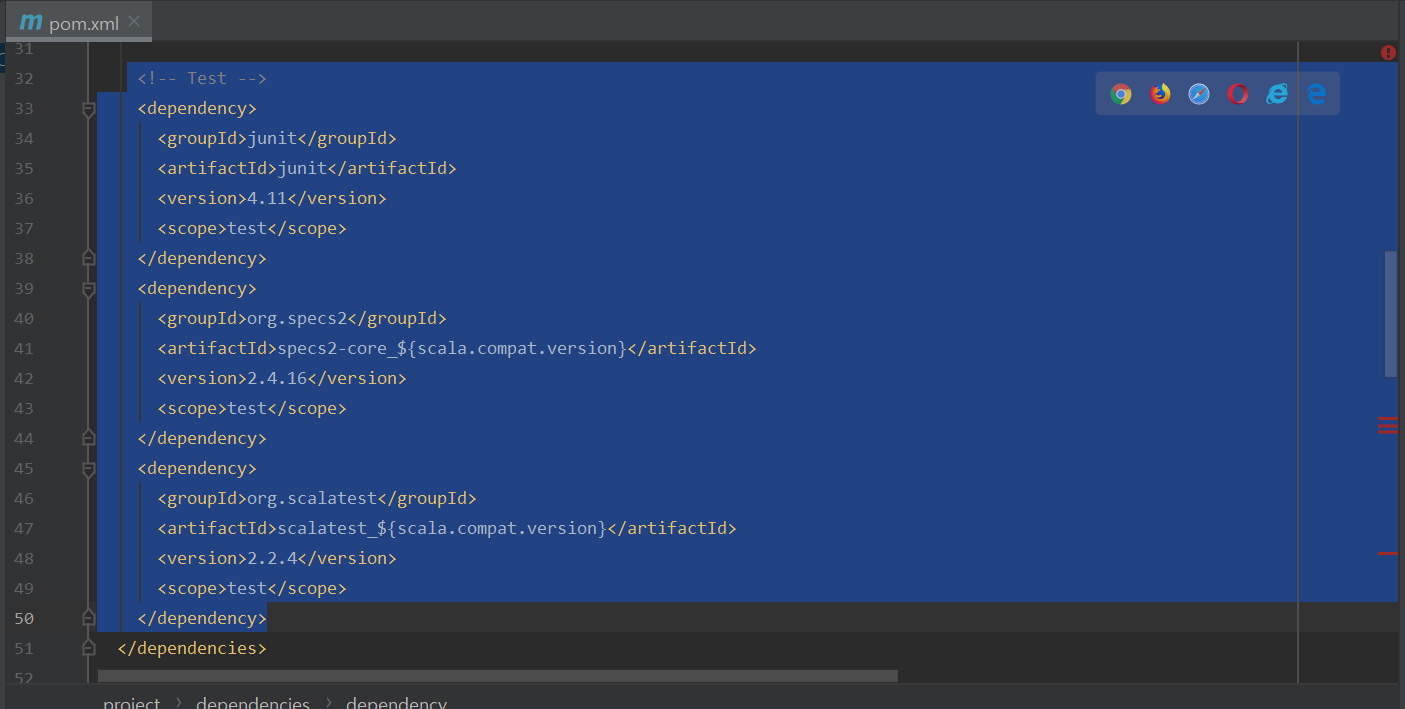

2.1 Test 관련 설정 삭제.

Alt text

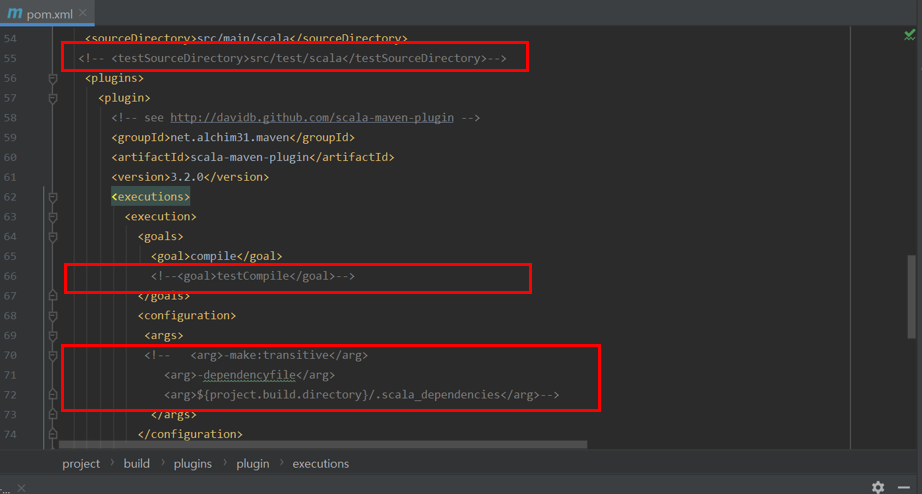

2.2 testSourceDirectory, goal, arg 주석 or 삭제 Alt text

2.3 surefire 플러그인 삭제. Alt text

2.4 shade 플러그인 추가.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

<plugin>
     <groupId>org.apache.maven.plugins</groupId>
     <artifactId>maven-shade-plugin</artifactId>
     <version>3.0.0</version>
     <executions>
         <execution>
             <phase>package</phase>
             <goals>
                 <goal>shade</goal>
             </goals>
         </execution>
     </executions>
     <configuration>
         <filters>
             <filter>
                 <artifact>*.*</artifact>
                 <excludes>
                     <exclude>META-INF/*.SF</exclude>
                     <exclude>META_INF/*.DSA</exclude>
                     <exclude>META_INF/*.RSA</exclude>
                 </excludes>
             </filter>
         </filters>
         <finalName>${project.artifactId}-khg-${project.version}</finalName>
     </configuration>
 </plugin>

Alt text

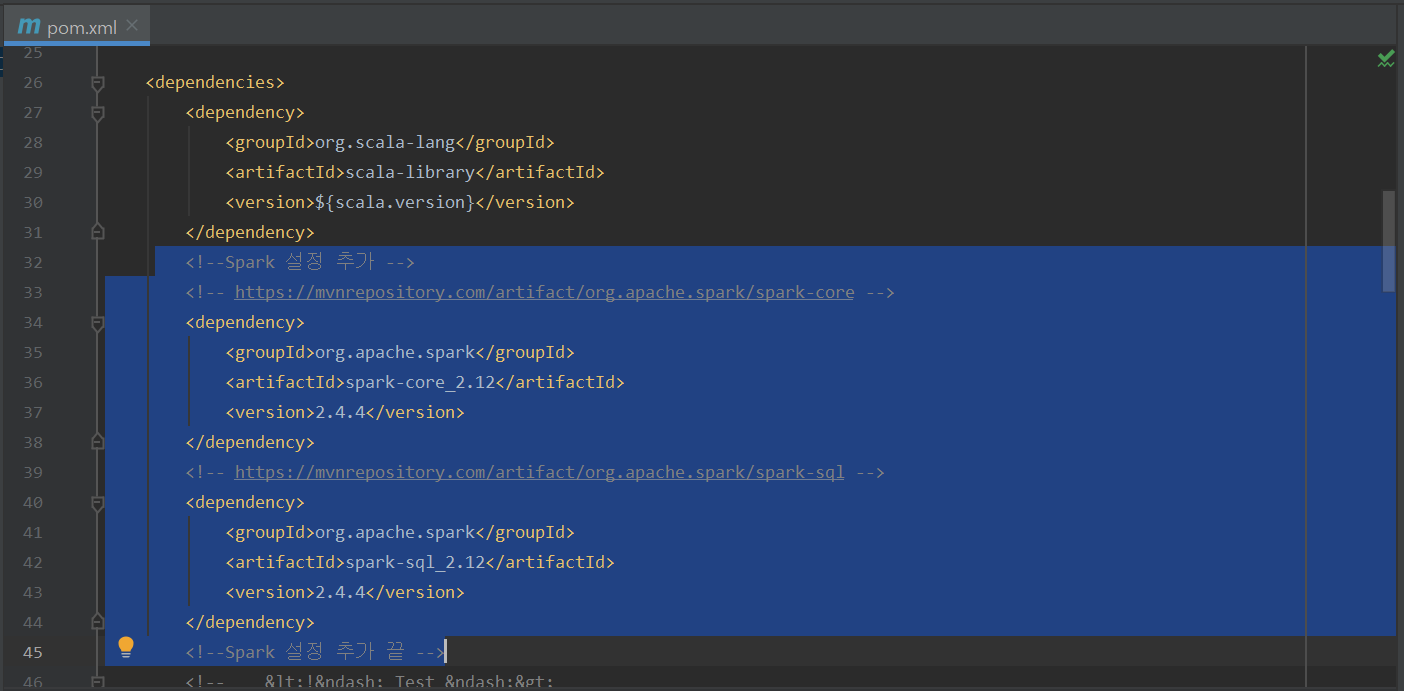

2.5 scala 관련 디펜던시 추가.

1
2
3
4
5
6
7
8
9
10
11

        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.12</artifactId>
            <version>2.4.4</version>
        </dependency>

        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.12</artifactId>
            <version>2.4.4</version>
        </dependency>

Alt text

3. 코드 작성 및 컴파일.

3.1 코드작성

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

package com.khg
import org.apache.spark.sql.SparkSession
import org.apache.hadoop.conf._
import org.apache.hadoop.fs._

object csvToORC {
  case class data(ADT_CODE: String, ADT_YYMM: String, ADT_DIV: String, LOC_CODE: String, ADT_LOC: String, ADT_AREA: String, ADT_NUM: Int, DEATH_NUM: Int, SERIOUS_INJURED_NUM: Int, SLIGHTH_INJURED_NUM: Int, INJURED_NUM: Int)

  def main(args: Array[String]): Unit = {
    val conf = new Configuration()
    val fs = org.apache.hadoop.fs.FileSystem.get(conf)
    val targetPath= new Path("/data/test.orc")
    val spark = SparkSession.builder
      .appName("csvToORC")
      .getOrCreate()

    val df = spark.read
      .option("header", "true") // Use first line of all files as header
      .option("encoding", "UTF-8")
      .csv("/data/test.csv")

    df.createOrReplaceTempView("test")
    val sqlDF = spark.sql("SELECT * FROM test")
    if (fs.exists(targetPath)) {
      fs.delete(targetPath, true)
    }
    sqlDF.write.format("orc").save(targetPath.toString)
  }
}

3.2 컴파일

컴파일은 우측 메이븐 -> Lifecycle -> clean, complie, package 순으로 진행한다.

Alt text

3.3 jar 생성

target에 jar 파일 생성 완료.

Alt text

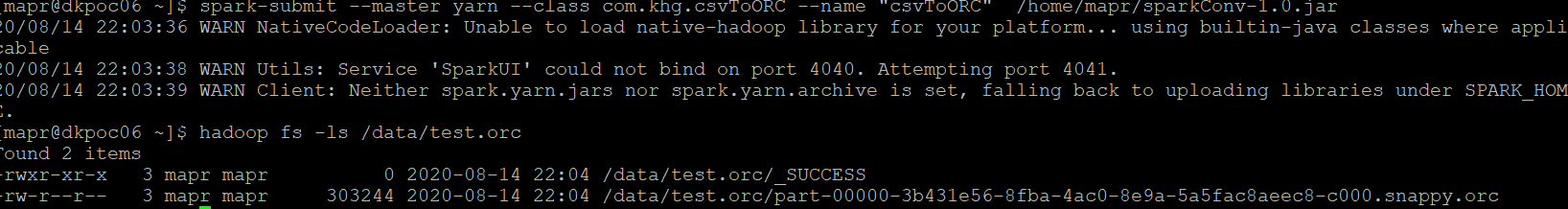

4. spark-submit

서버에 jar 파일 및 테스트데이터 업로드 후 spark-submit 진행.

1

spark-submit --master yarn --class com.khg.csvToORC --name "csvToORC"  /home/mapr/sparkConv-1.0.jar

Alt text

5. pom.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.khg</groupId>
    <artifactId>sparkConv</artifactId>
    <version>1.0</version>
    <name>${project.artifactId}</name>
    <description>My wonderfull scala app</description>
    <inceptionYear>2015</inceptionYear>
    <licenses>
        <license>
            <name>My License</name>
            <url>http://....</url>
            <distribution>repo</distribution>
        </license>
    </licenses>
    <repositories>
        <repository>
            <id>mapr-releases</id>
            <url>https://repository.mapr.com/maven/</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
            <releases>
                <enabled>true</enabled>
            </releases>
        </repository>
    </repositories>
    <properties>
        <maven.compiler.source>1.6</maven.compiler.source>
        <maven.compiler.target>1.6</maven.compiler.target>
        <encoding>UTF-8</encoding>
        <scala.version>2.11.5</scala.version>
        <scala.compat.version>2.11</scala.compat.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>${scala.version}</version>
        </dependency>
        <!-- hadoop 설정 추가 -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.0-mapr-1808</version>
        </dependency>
        <!--Spark 설정 추가 -->
        <!-- https://mvnrepository.com/artifact/org.apache.spark/spark-core -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.12</artifactId>
            <version>2.4.4</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.spark/spark-sql -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.12</artifactId>
            <version>2.4.4</version>
        </dependency>
        <!--Spark 설정 추가 끝 -->
        <!--    &lt;!&ndash; Test &ndash;&gt;
            <dependency>
              <groupId>junit</groupId>
              <artifactId>junit</artifactId>
              <version>4.11</version>
              <scope>test</scope>
            </dependency>
            <dependency>
              <groupId>org.specs2</groupId>
              <artifactId>specs2-core_${scala.compat.version}</artifactId>
              <version>2.4.16</version>
              <scope>test</scope>
            </dependency>
            <dependency>
              <groupId>org.scalatest</groupId>
              <artifactId>scalatest_${scala.compat.version}</artifactId>
              <version>2.2.4</version>
              <scope>test</scope>
            </dependency>-->
    </dependencies>

    <build>
        <sourceDirectory>src/main/scala</sourceDirectory>
        <!-- <testSourceDirectory>src/test/scala</testSourceDirectory>-->
        <plugins>
            <plugin>
                <!-- see http://davidb.github.com/scala-maven-plugin -->
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.2.0</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <!--<goal>testCompile</goal>-->
                        </goals>
                        <configuration>
                            <args>
                                <!--   <arg>-make:transitive</arg>
                                   <arg>-dependencyfile</arg>
                                   <arg>${project.build.directory}/.scala_dependencies</arg>-->
                            </args>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>3.0.0</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <filters>
                        <filter>
                            <artifact>*.*</artifact>
                            <excludes>
                                <exclude>META-INF/*.SF</exclude>
                                <exclude>META_INF/*.DSA</exclude>
                                <exclude>META_INF/*.RSA</exclude>
                            </excludes>
                        </filter>
                    </filters>
                    <finalName>${project.artifactId}-khg-${project.version}</finalName>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>
